Part #: P4M800-PRO-M7 Warranty: 30 Day Return/ Exchange Condition: New Packaging: Retail Box Manufacturer: Biostar MFG Part #: P4M800 Pro-M7

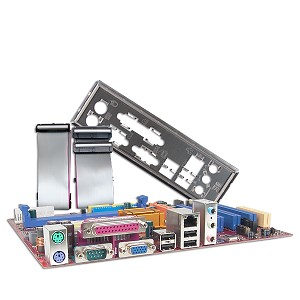

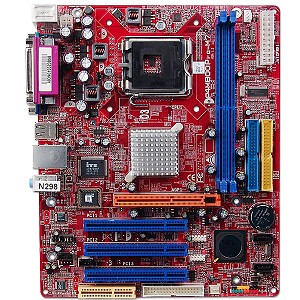

Build your next Socket 775 motherboard with this Biostar P4M800 Pro-M7 mATX Motherboard! It features the VIA P4M800 Pro + VT8237R Plus chipset and is equipped with two 240-pin DIMM sockets with support of up to 2 GB DDR2 of system memory! Get ready for fast gaming and DVD playback with integrated VIA S3 UniChrome graphics. Listen to high fidelity sound with the Realtek ALC655 6-Channel AC97 audio and network with the Realtek RTL8201 CL 10/100 LAN.There are two IDE and two SATA ports for connecting hard drives or optical drives! With an AGP slot, three PCI slots and one CNR slot, it's easy to add a graphics card, audio card, modem card and even a TV Tuner card! This Biostar P4M800 Pro-M7 motherboard supports Intel Pentium D, Pentium 4 and Celeron D processors up to 3.80 GHz with support for Intel HyperThreading technology and up to 1066 MHz FSBs (Front Side Bus)! Features/Specifications: Biostar P4M800 Pro-M7 VIA P4M800 Pro Socket 775 mATX Motherboard General Features: VIA P4M800 Pro + VT8237R Plus chipset Socket 775 mATX form factor Supports up to 2 GB DDR2 SDRAM (DDR2 400/533) VIA S3 UniChrome integrated graphics with up to 64 MB shared memory Realtek ALC655 6-Channel AC97 audio Realtek RTL8201 CL 10/100 LAN Two (2) SATA connectors Supports SATA RAID 0, 1 Two (2) IDE controllers One (1) floppy controller Expansion Slots: One (1) 8x AGP slot Three (3) PCI slots One (1) CNR slot Two (2) 240-pin DIMM sockets I/O Ports: Two (2) PS/2 ports One (1) 9-pin serial port One (1) 15-pin VGA port One (1) 25-pin parallel port Eight (8) USB 2.0 ports (four on back and four via header) One (1) RJ-45 Ethernet jack Line-in, microphone, and line-out jacks Supported Processors: Intel Pentium D, Pentium 4 and Celeron D processors up to 3.80 GHz Supports 533/800/1066 MHz FSB (Front Side Bus) Supports Intel Hyper-Threading technology Regulatory Approvals: FCC CE Package Includes: Biostar P4M800 Pro-M7 Socket 775 mATX Motherboard Driver and Utilties CD IDE cable Floppy cable I/O Shield Additional Information: Notes: Model: P4M800 Pro-M7 UPC: 8 02700 50017 6 EAN: 4 712013 692047 Retail box may vary Product Requirements: ATX case ATX power supply Supported processor Supported RAM Rest of system Informational Links: Motherboard Specifications CPU Support Product Drivers: Driver Support
